How Does A Carbon Dioxide Sensor Work?

Introduction

Carbon dioxide (CO2) is an essential element in understanding environmental and health-related concerns. With its status as one of the major greenhouse gases responsible for climate change, monitoring CO2 levels has become increasingly critical. Carbon dioxide sensors, devices designed to detect and measure the presence of CO2 in the air, play a vital role in various industries, from ensuring optimal air quality in buildings to ensuring safety in industrial processes. This article explores how CO2 sensors work, the different technologies involved, and their applications in both environmental monitoring and industrial operations.

What is a Carbon Dioxide Sensor?

A carbon dioxide sensor, or CO2 sensor, is an instrument that measures the concentration of carbon dioxide in a given space. These sensors are used to assess air quality and manage systems like ventilation, air conditioning, and indoor air regulation in various settings, including homes, offices, and industrial spaces. In addition to their role in monitoring indoor air quality, CO2 sensors are also employed in medical devices like capnographs to measure the function of the lungs, as well as in environmental monitoring to track CO2 levels contributing to climate change.

Carbon dioxide is a colorless, odorless gas that is naturally produced during respiration, combustion, and the decomposition of organic material. It is found both indoors and outdoors, originating from sources like human activity, vehicle emissions, and industrial processes. Although CO2 is not harmful at low concentrations, excessive buildup in closed spaces can lead to discomfort or even health risks, including dizziness, shortness of breath, and headaches. Furthermore, CO2 is a significant greenhouse gas, contributing to global warming and climate change by trapping heat in the Earth's atmosphere.

How Do CO2 Sensors Work?

CO2 sensors work based on different detection principles, each leveraging a unique method to measure the concentration of carbon dioxide. These principles include:

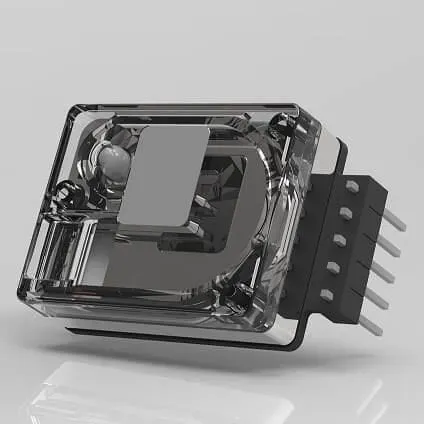

Non-Dispersive Infrared (NDIR) Sensors

One of the most commonly used methods for CO2 detection is through Non-Dispersive Infrared (NDIR) technology. This principle relies on the fact that CO2 molecules absorb infrared (IR) light at specific wavelengths. The NDIR sensor shines infrared light through a sample of air and measures how much of that light is absorbed. CO2 strongly absorbs infrared light at a wavelength of 4.3 micrometers, which is the key to detecting its presence.

If the sensor detects absorption of the infrared light, it indicates that CO2 is present in the air. The amount of infrared light absorbed correlates directly to the concentration of CO2: the higher the absorption, the higher the CO2 level. This method is widely used due to its high accuracy and reliability in detecting CO2 even in complex environments.

Photo-Acoustic Spectroscopy (PAS)

Another method for measuring CO2 concentration is photo-acoustic spectroscopy (PAS), which relies on the photo-acoustic effect. In this process, a sample of air is exposed to electromagnetic pulses that are tuned to the absorption wavelength of CO2. When CO2 molecules absorb the energy, they undergo a thermal expansion that generates pressure waves (or acoustic waves). These waves are detected by an acoustic detector and converted into CO2 concentration readings.

PAS sensors offer high precision and are particularly useful for measuring trace gases in environments where low levels of CO2 need to be detected. This method is often employed in research and industrial applications requiring high sensitivity.

Electrochemical CO2 Sensors

Electrochemical sensors operate based on the interaction between CO2 molecules and a chemically reactive surface. When CO2 enters the sensor, it reacts with a polymer or chemical electrode inside the sensor, generating an electrical charge. The magnitude of the electrical charge is proportional to the amount of CO2 present in the air.

This method is cost-effective and can be used in applications requiring a more straightforward detection system, such as in low-cost consumer-grade devices. Electrochemical sensors are known for their compactness and ease of integration into various devices.

Benefits of Measuring CO2 Levels

Monitoring and managing CO2 levels in indoor environments provide several benefits, including:

Improved Health and Safety

By maintaining CO2 levels below 1000 parts per million (ppm), environments can be kept within a healthy and safe range. Elevated CO2 concentrations can lead to adverse effects, such as reduced cognitive function, drowsiness, and discomfort. In workplaces, schools, and other environments where people spend extended periods, managing CO2 levels is essential for health and well-being.

Enhanced Productivity

Research has shown that high CO2 levels can impair cognitive abilities, leading to decreased productivity and decision-making. By ensuring optimal CO2 concentrations, businesses can boost worker performance and create more comfortable, productive workspaces. This is particularly important in office buildings, factories, and schools where the well-being of individuals directly impacts overall performance.

Energy Savings

Proper management of ventilation systems, based on real-time CO2 monitoring, allows for more energy-efficient use of heating, cooling, and ventilation. By ventilating spaces only when CO2 levels exceed a certain threshold, energy consumption can be optimized. This not only saves energy but also reduces operational costs for building managers and industrial facilities.

Applications of CO2 Sensors

CO2 sensors have a wide range of applications in various industries, from environmental monitoring to health and safety, including:

Indoor Air Quality Management

CO2 sensors are commonly used in buildings to monitor indoor air quality. In spaces like offices, classrooms, and hospitals, sensors are employed to regulate HVAC (Heating, Ventilation, and Air Conditioning) systems. These sensors help ensure that CO2 levels remain within a safe range, improving air quality and promoting better health for occupants. The integration of CO2 sensors with smart building technologies also helps optimize ventilation systems, contributing to energy efficiency.

Capnography in Medical Devices

Capnography is a technique used in medicine to measure the concentration of CO2 in a patient’s exhaled breath. This measurement is vital in assessing lung function, especially in anesthetized patients, those in critical care, or during surgeries. Carbon dioxide sensors are integral components in capnographs, providing real-time readings of respiratory conditions and helping medical professionals adjust ventilation or oxygen delivery.

Environmental Monitoring and Climate Research

CO2 sensors are crucial for monitoring greenhouse gases and studying climate change. In outdoor environments, these sensors are used to measure the concentration of CO2 in the atmosphere. They are deployed in various locations, including forests, urban areas, and research stations, to track CO2 emissions and better understand how human activities contribute to global warming. These sensors play a critical role in environmental research and policy-making efforts aimed at reducing carbon emissions.

Industrial and Safety Applications

In industrial settings, particularly in confined spaces such as warehouses, tunnels, and factories, CO2 sensors are used to monitor gas concentrations to ensure safety. Elevated CO2 levels in such environments can indicate a potential hazard, such as insufficient ventilation or combustion byproducts. By detecting these increases early, CO2 sensors help prevent dangerous situations like asphyxiation or explosion risks.

Agriculture and Horticulture

In controlled environments like greenhouses, CO2 sensors are employed to regulate the concentration of CO2, optimizing plant growth. Plants use CO2 during photosynthesis, and increasing CO2 levels can enhance crop yields. By maintaining precise CO2 concentrations, growers can ensure that plants receive the optimal environment for growth, leading to more efficient farming practices.

Conclusion

Carbon dioxide sensors are indispensable tools for monitoring CO2 concentrations in various settings. From ensuring healthy indoor air quality to supporting climate research, CO2 sensors help protect human health, improve productivity, and mitigate environmental impacts. Understanding how these sensors work, including the various detection methods and their applications, is essential for leveraging their full potential in creating safer, more sustainable environments. As technology advances and demand for environmental regulation increases, CO2 sensors will continue to play a crucial role in fostering healthier, more efficient systems worldwide.
